Gross Vehicle Weight Rating: 11,000 lb

Wheelbase: 178″

Length: 24′ 9″

Width: 7′ 11″

Height Including Air Conditioning: 9′ 11.5″

Interior Height: 6′ 5″

Fresh Water Capacity: 36.5 gal

Grey Holding Tank Capacity: 26.4 gal

Black Holding Tank Capacity: 26.4 gal

Propane Capacity*: 13.2 US gal

Primary Bed: Twin Bed/Double Bed (2-32″ × 74″ or 1-64″ × 74″ Sleeping Area)

CHASSIS

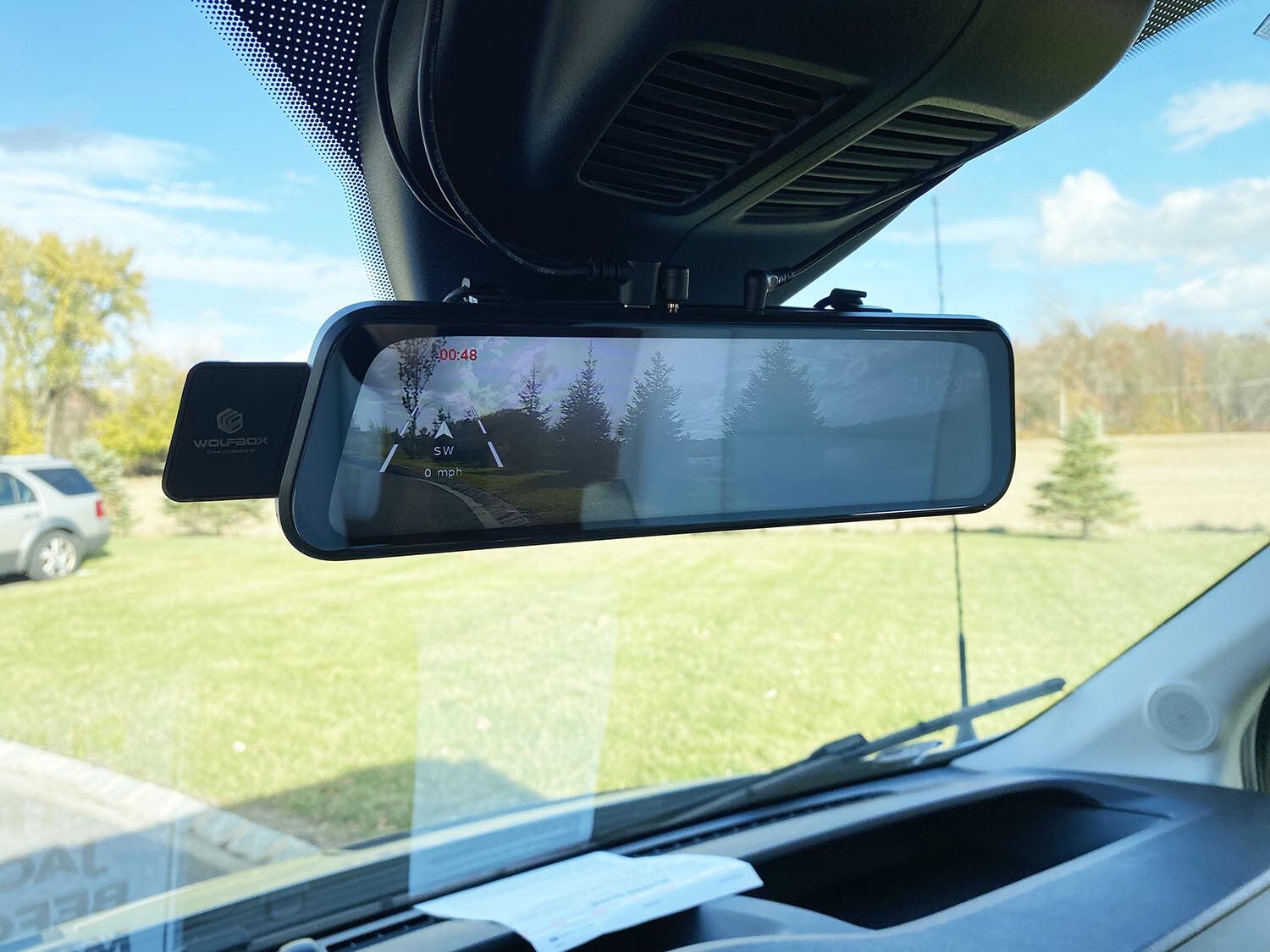

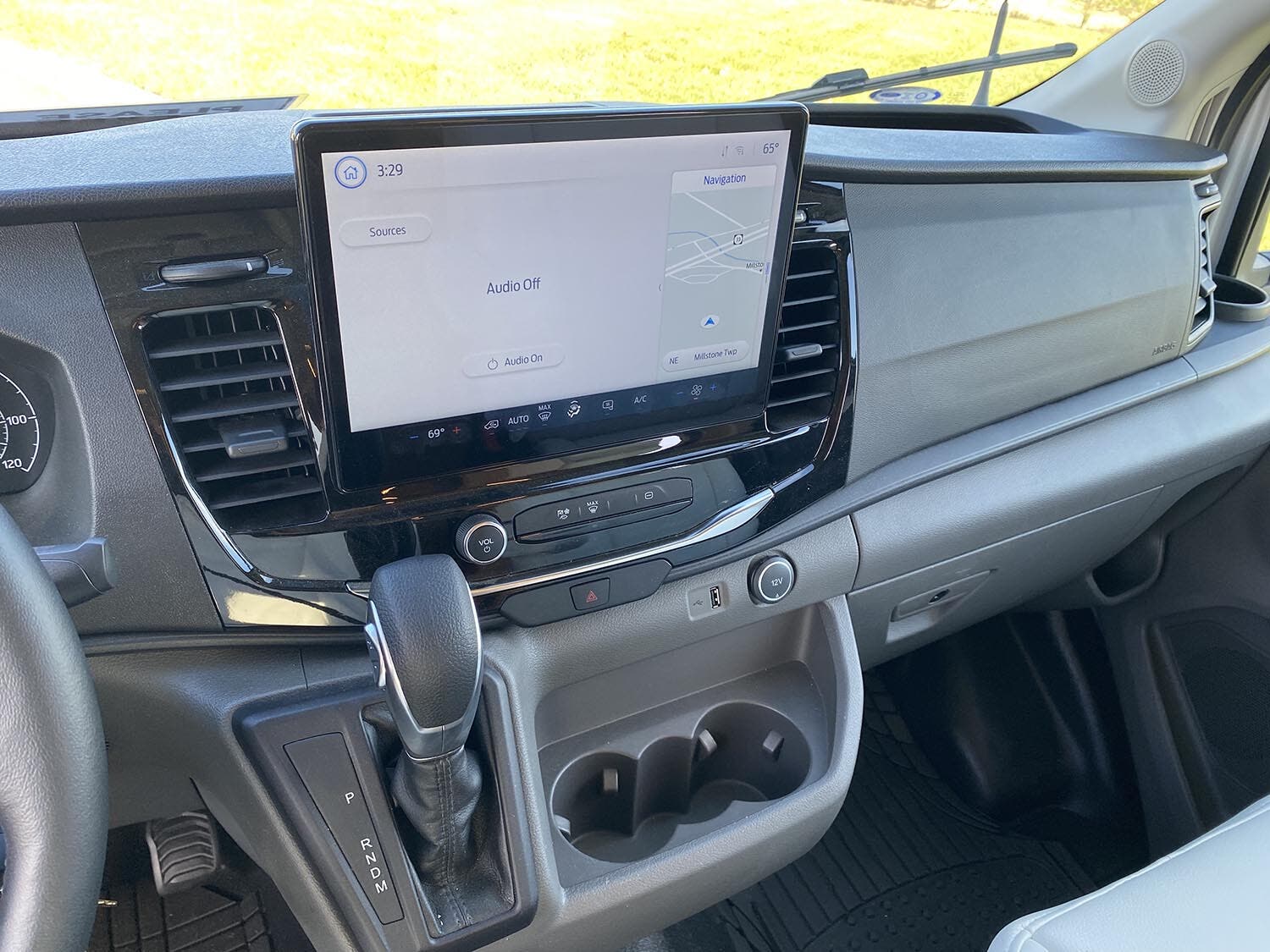

Ford Transit Dual Rear Wheel Chassis (178″ Wheelbase/11,000 lb GVWR), 3.5 L EcoBoost V6 Gas (310 hp/400 ft·lb Torque) with 10-Speed Automatic Transmission, Tow Haul Mode. Available with Optional Intelligent All-Wheel Drive (AWD). • Adaptive Cruise Control • Air Conditioning • Alternator – 250 A • Aluminum Alloy Wheels • Concealed Locking Fuel Filler • Driver and Passenger Exterior Courtesy Light • Fog Lamps • HID Headlamps • Illuminated Sun Visors • Leather-Wrapped Multifunctional Steering Wheel with Tilt/Telescopic Function • Post-Collision Braking, Pre-Collision Assist with Auto Emergency Braking, Auto High Beam Headlamps, Lane Keeping System, Forward Collision Warning and Side Curtain Airbag • Power Windows and Door Locks • Power/Heated Exterior Mirrors with Convex and Turn Signal • Privacy Drape in Cab • Rear Hitch Receiver with 7-Pin Connector • Rear View Mirror • Removable Carpeted Floor Mat • SYNC® 4 12″ Touchscreen Multimedia Center with AM/FM/SiriusXM/Navigation/Rear-View Camera • Tire Pressure Monitoring System • Ultraleather® Cab Seats with Armrests/Adjustable Lumbar Support/Recline, 4-Way Manual, Swivel Bases

*Some Ford Transit features listed may not be available on all chassis. • Powder Coated Steel and Aluminum Undercarriage Support Structure

CONSTRUCTION

Frameless Tinted All Glass Awning-Style Windows • Vacuum Bonded Aluminum Framed Insulated Contoured Sidewalls with Fiberglass Exterior • Vacuum Bonded Aluminum Framed Insulated Domed Roof with Fiberglass Exterior • Vacuum Bonded Aluminum Framed Insulated Floor with Composite Exterior

EXTERIOR

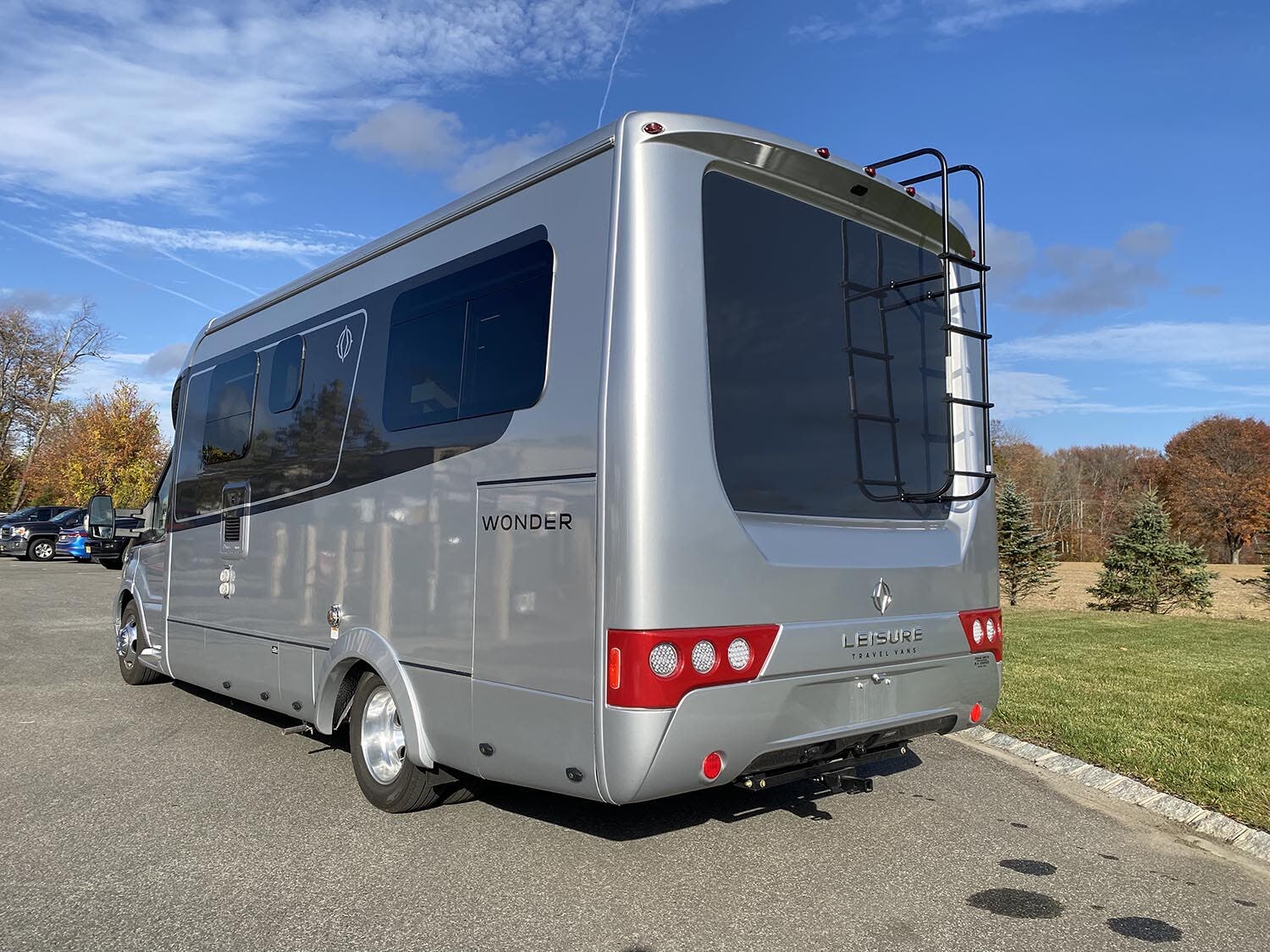

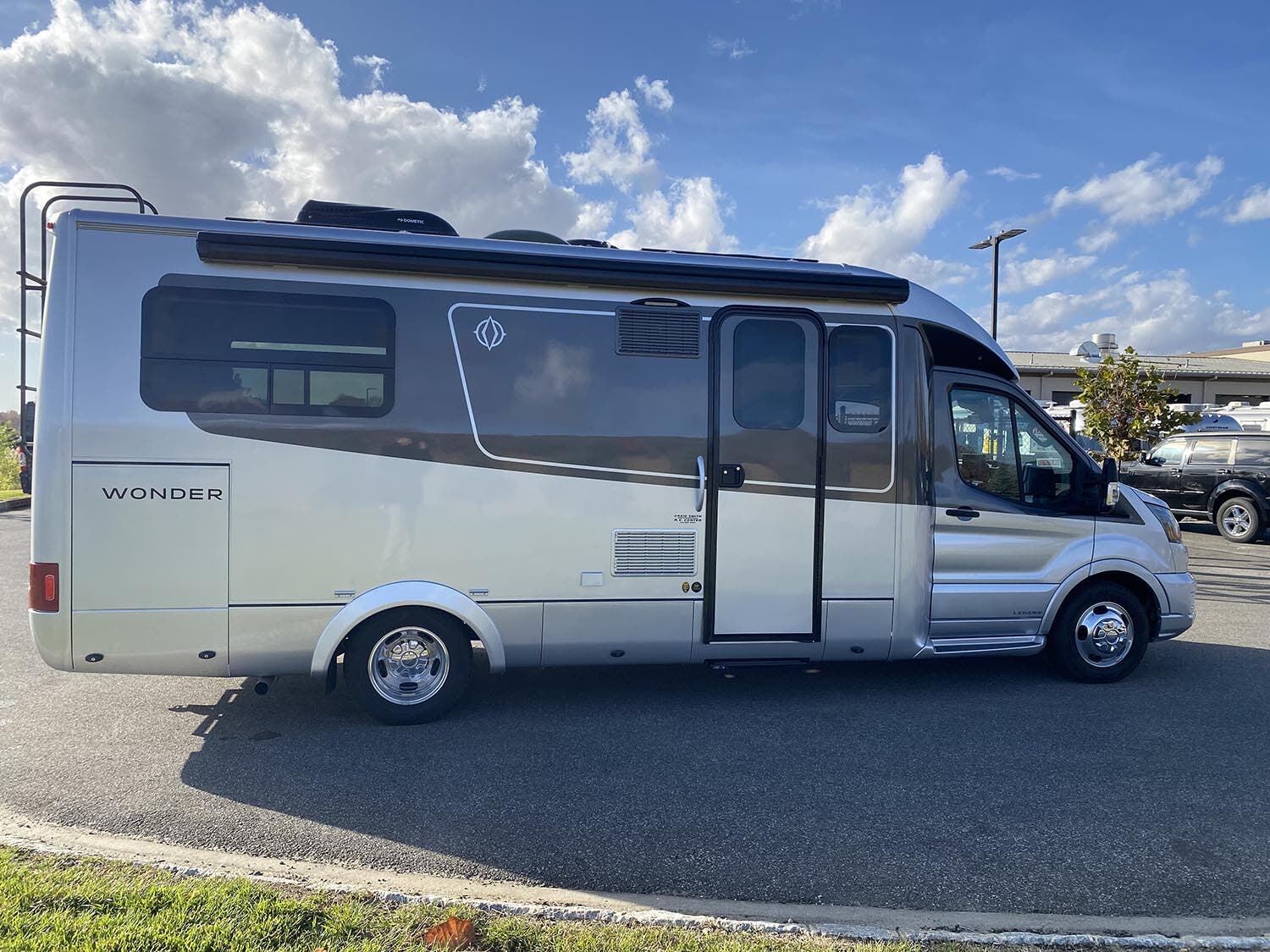

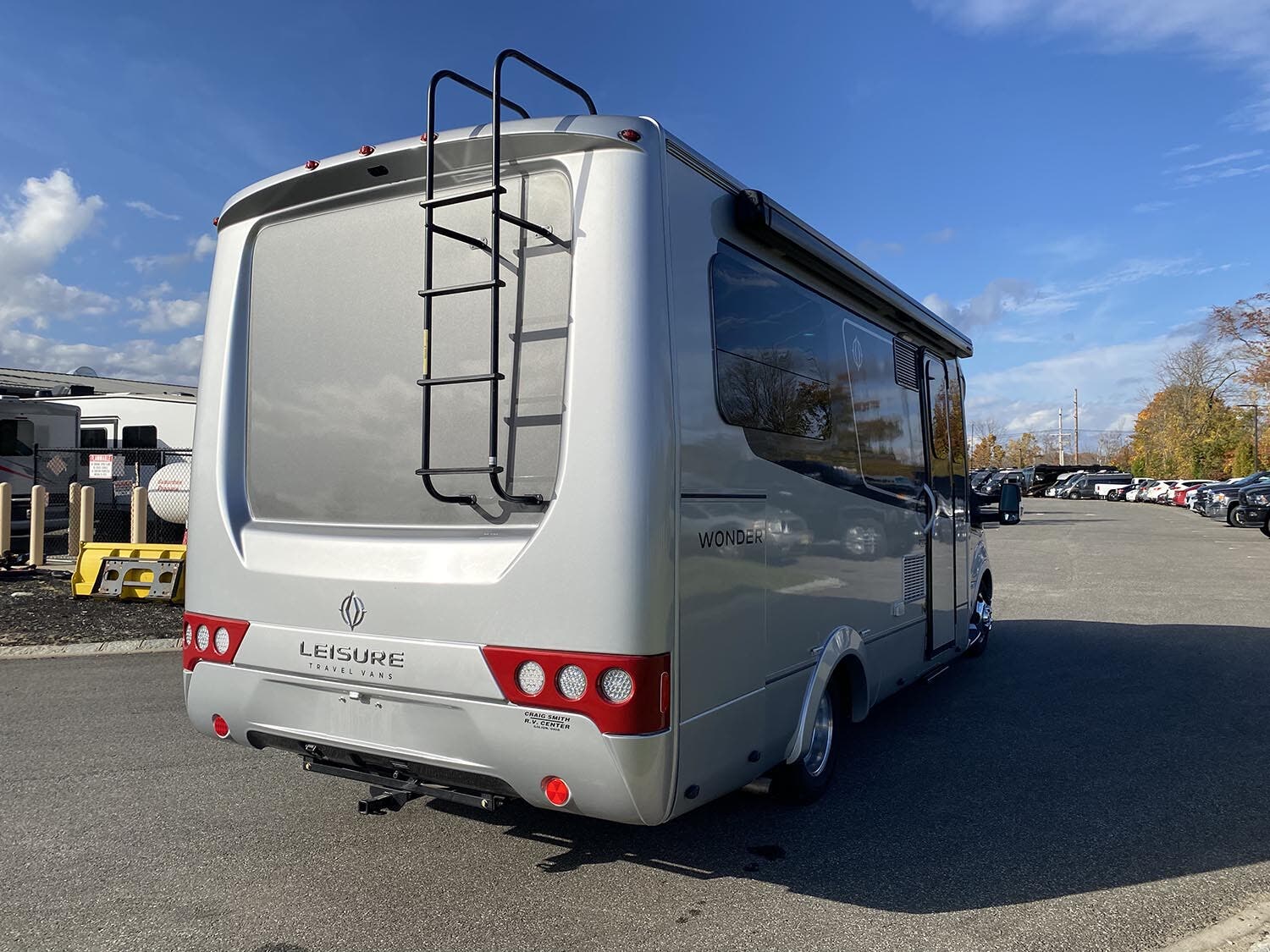

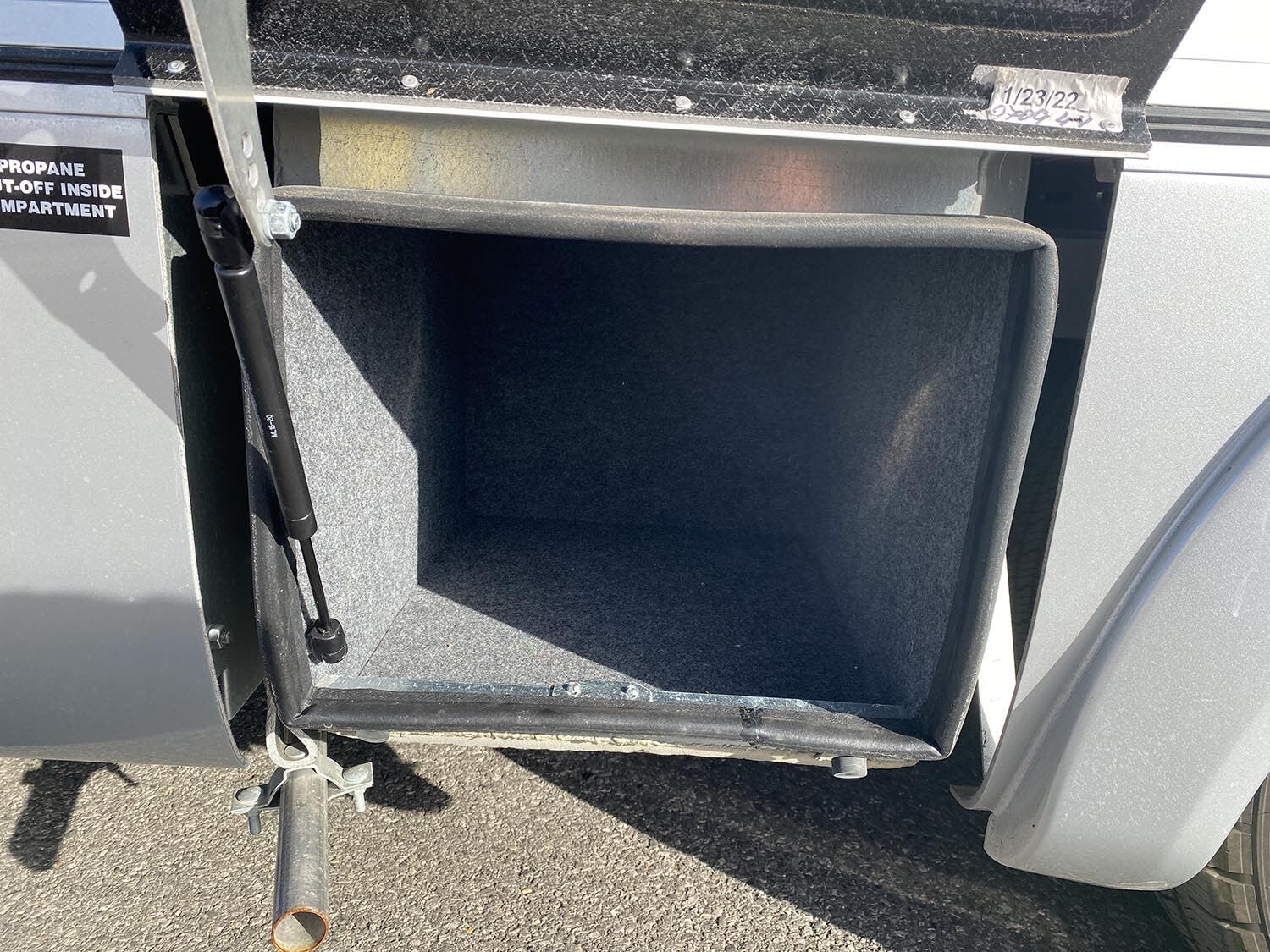

Chrome Automotive-Style “LTV” Branding • Contoured Entrance Door with Screen Door & Window • Contoured Fiberglass Baggage Doors with Top Continuous Hinge and Draw Tight Latches • Illuminated Assist Handle • Large Exterior Storage Compartment with Lights (FTB) • Large Pass Through Exterior Storage Compartment with Bicycle/Cargo Slide (RTB) • LED Patio Light • Painted Color Matched Front Bumper • Painted Fiberglass Running Boards and Flares • Painted Full Body with Clear Coat • Powered Retractable Entrance Step • Water Pump Switch in Utility Center

INTERIOR

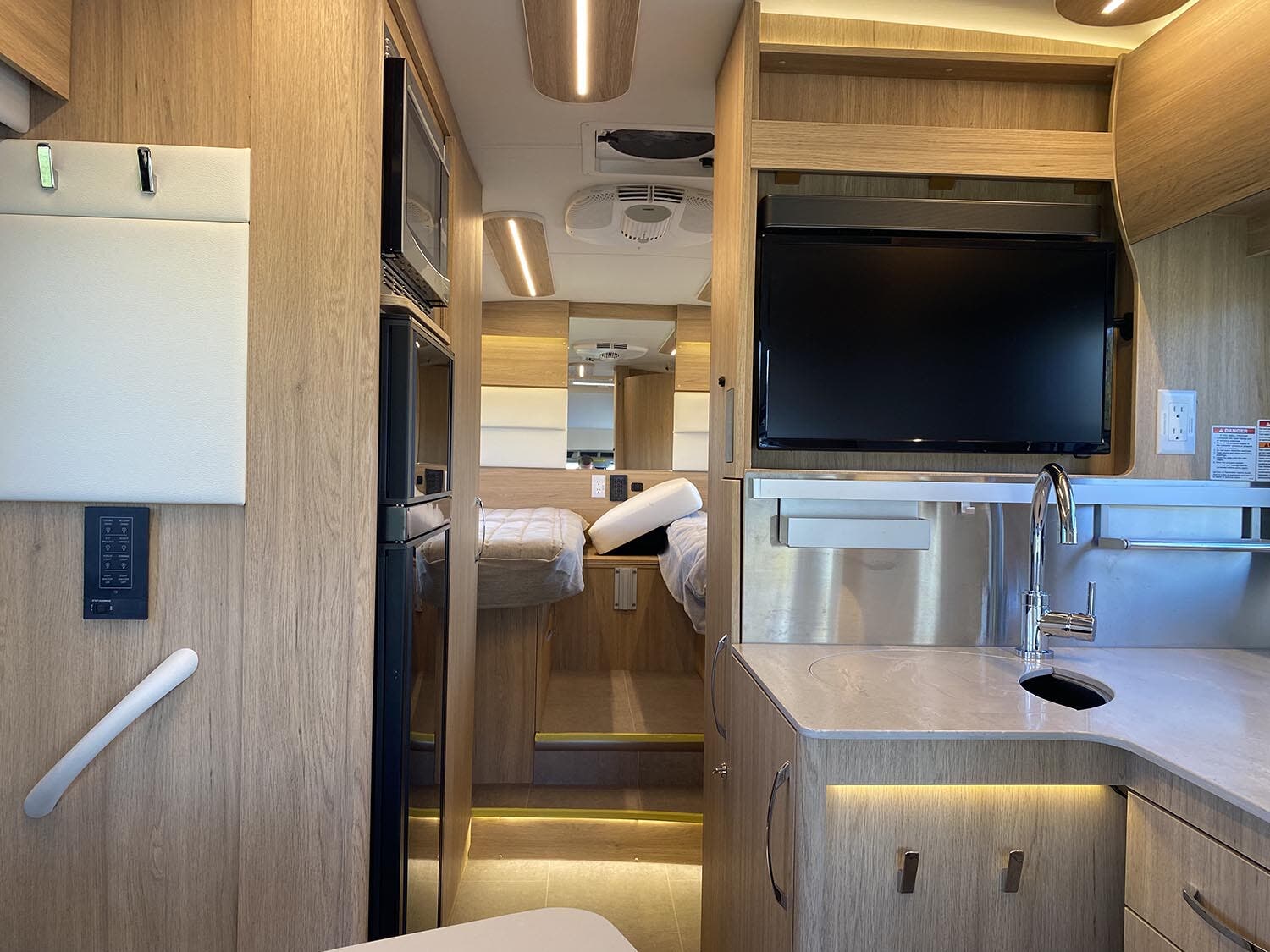

Coach Floor Extension • Curved Soft Close Overhead Cabinetry Doors with Hidden Catch • Dry Chemical Fire Extinguisher • Full Extension Ball Bearing Soft Close Drawer Tracks • Illuminated Assist Handle • LED Aisle Lighting and Hidden Accent Lights Above Cabinet with Dimmer • LED Ceiling Light Panels with Dimmer in Bedroom and Living Areas • LED Recessed Strip Lighting with Dimmer Under Overhead Cabinets • Opening Skylight with Screen and Shade • Roller Shades • Smoke, LP, and CO Detectors • Soft Vinyl Ceiling Headliner • Tile Look Vinyl Flooring Throughout

GALLEY

Accessory Rail • Contoured Solid Surface Corian® Countertop • Convection Microwave Oven • Countertop Extension (RL, RTB) • Double Door, 3-way, 6.7 ft3 Refrigerator Freezer • Flush Mount LP Cooktop with Hinged Glass Cover • Garbage Can • Pull-Out Pantry (RL, RTB) • Stainless Steel Backsplash • Stainless Steel Undermount Sink with Sink Cover

BATH

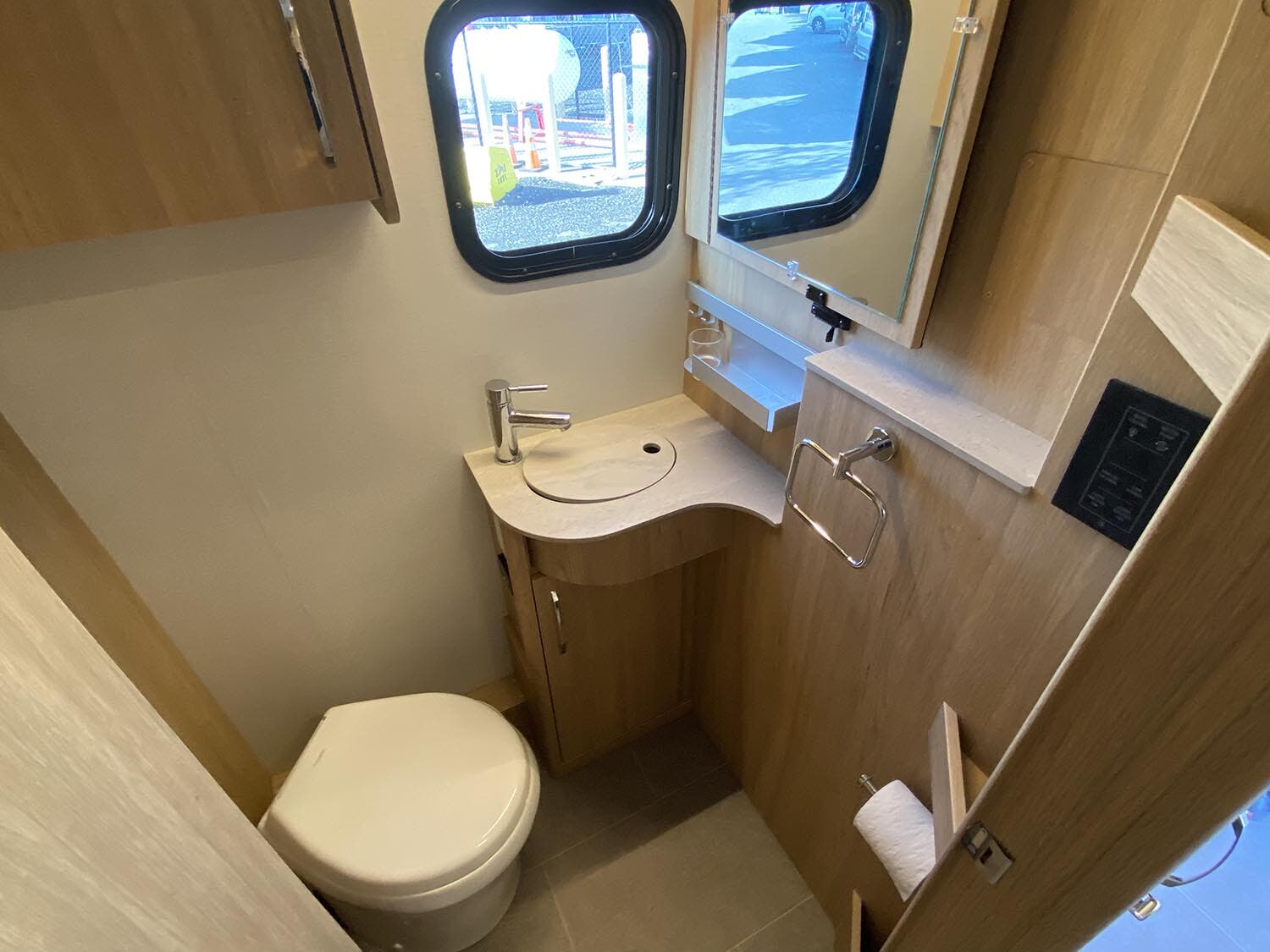

Accessory Rail • Ceramic Foot Flush Toilet with Hand Sprayer (FTB) • Ceramic Macerator Toilet (RL, RTB) • Flip Down Towel Bar in Shower • Grab Handle in Shower • Medicine Cabinet • Retractable Self Cleaning Shower Screen • Robe Hook in Shower • Shower Skylight • Shower with Integrated Storage • Stainless Steel Undermount Sink • Water Pump Switch in Lavatory

ENTERTAINMENT

Exterior Cable TV Hookup • Mobile Data/Wi-Fi Extender with Integrated TV Antenna • Satellite Dish Pre-Wire • Smart Blu-ray Player • USB Outlets in Bed and Living Areas

HEATING & AIR

Furnace – 20,000 BTU • Lavatory Fan and Galley Fan • Low Profile 15,000 BTU Air Conditioner with Heat Pump

ELECTRICAL

120 V GFCI Protected Receptacles (Patio, Galley, and Lavatory) • 12 V Battery Disconnect • 2000 W Pure Sine Inverter with 80 A Battery Charger • 30′ Power Cord – 30 A • Dual 6 V AGM Coach Batteries • MultiPlex Wiring Control System • Rear Storage 12 V Power Receptacle (RTB) • Surge Protector

PLUMBING

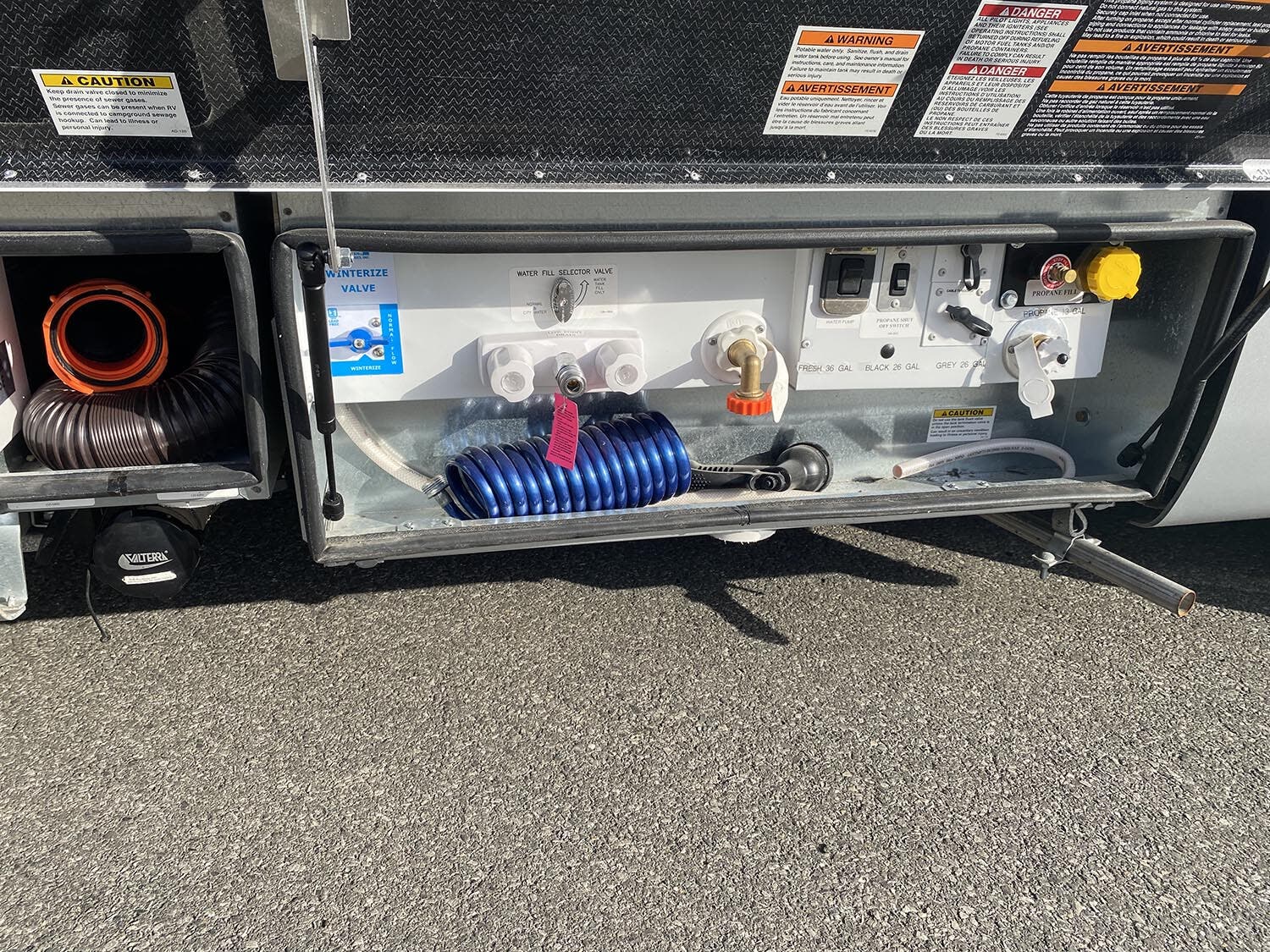

Antifreeze Pick Up Kit • Black Tank Flushing System • Contained Sewer Hose • Exterior Shower • LP Tank • Multiple Water Pump Switches • Quick Connect Exterior Accessory LP Outlet • Tank Level, Battery Monitoring Panel • Truma AquaGo Comfort Plus Water Heater • Water Heater By-Pass Valve • Water Selector Valve (City Water or Water Tank Fill)
