OPTIONS INCLUDED:

Eco Trek Option: EcoTrek 400 Lithium Power Modules

Solar Panel Options: 200W solar panel and charge control

Volt Start Option: Volt start autostart battery protection

Electric Environmental Options: Underhood engine generator inc. minimum 2500 watt inverter/charger

Chassis Enhancement Options:

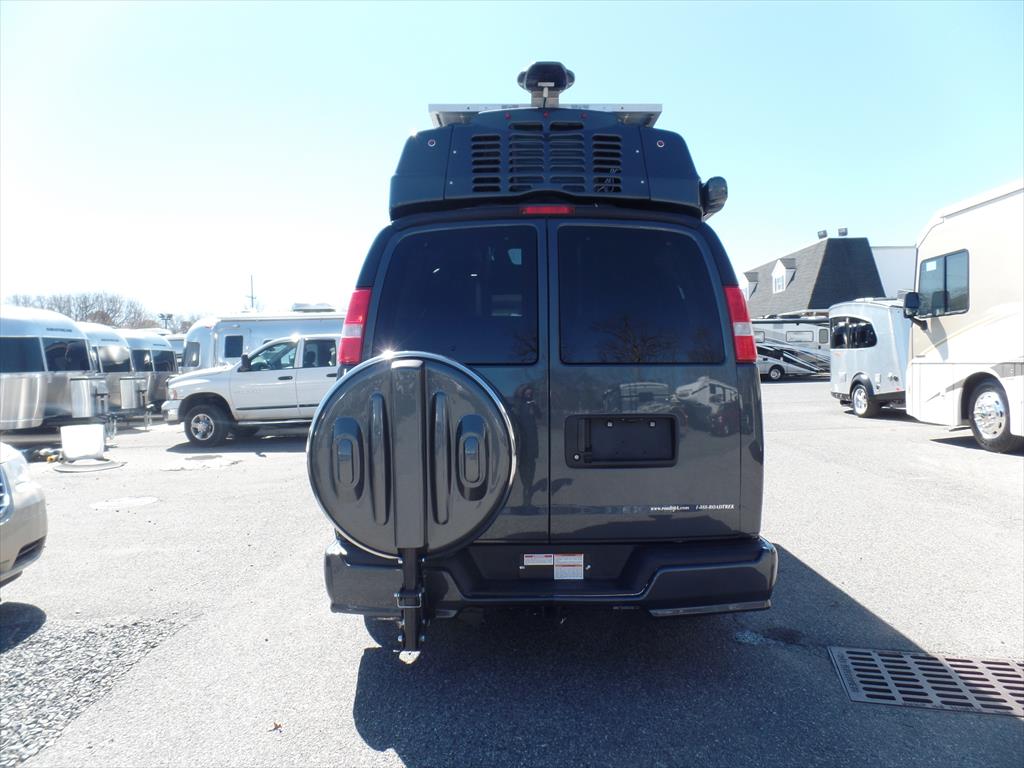

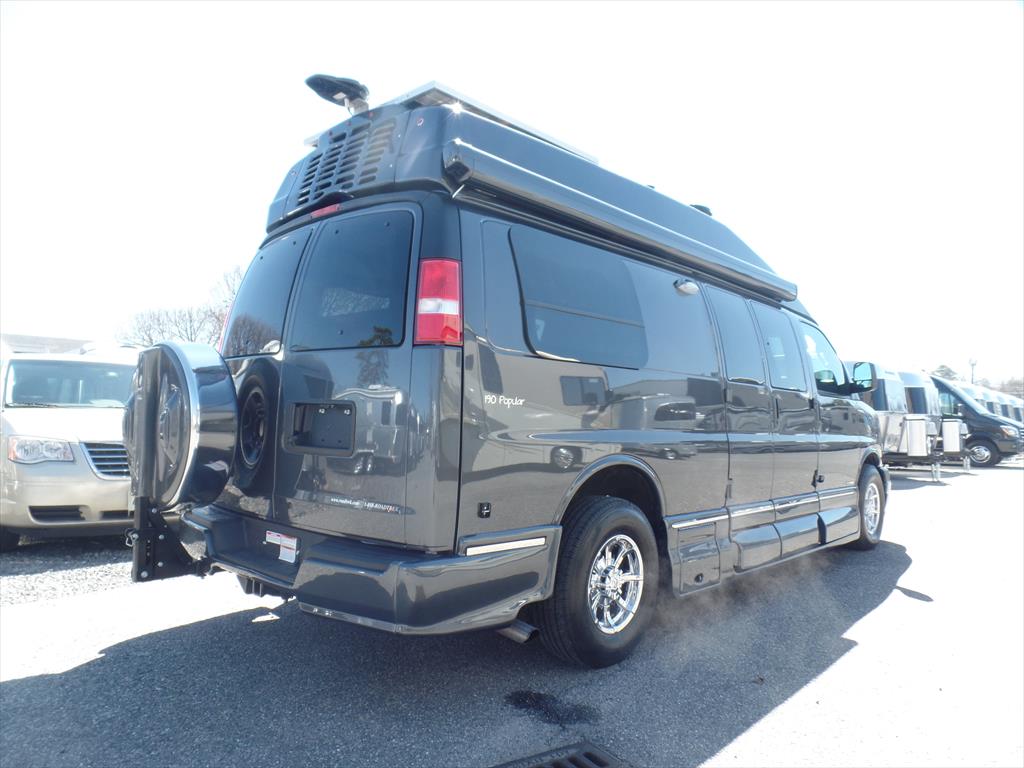

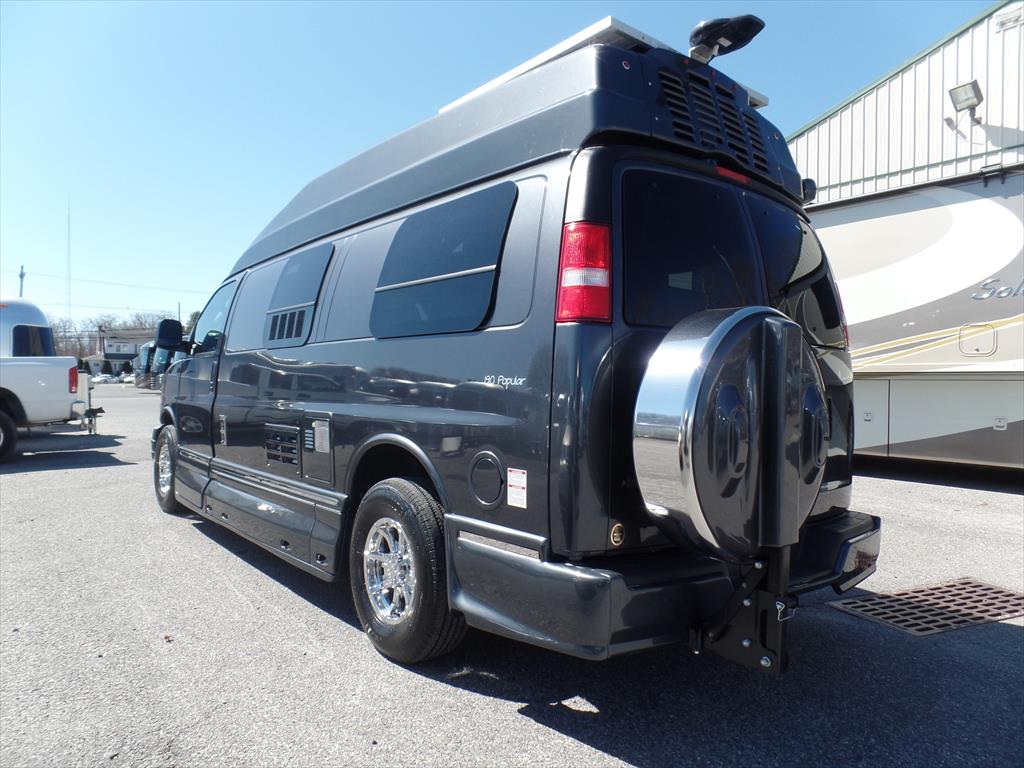

-Continental spare tire kit

-Aluminum wheels with OEM spare tire

Coach Enhancement Options:

-GM Onstar audio system includes my link system

-Screens for rear and side cargo doors

-24″ flat screen TV on rotating bracket

Starting MSRP$123,875 USD

Base ModelChevrolet Express 3500

Seating CapacitySix

Sleeping CapacitySleeps 2-3 in front single and rear twins or king-size bed

Fuel TypeGas

Exterior Length20′ 5″

Exterior Width (without mirrors)6′ 7″

Interior Aisle Width30″

Exterior Height (with roof AC)8′ 10″

Interior Standing Height6′ 1″

Wheelbase155″

Gross Vehicle Weight Rating9,600 lbs.

Occupant & Cargo Carrying Capacity 12,000 lbs.

Gross Combined Weight Rating 216,000 lbs.

Towing – Tow Weight 38,200 lbs.

Towing – Tongue Weight 41,000 lbs.

Fresh Water Capacity31 U.S. gal.

Black Holding Tank Capacity10 U.S. gal.

Gray Holding Tank Capacity23 U.S. gal.

Storage Capacity (with options)54 cu. ft. (59 cu. ft.)

Rear King Bed Size (width x length)73” x 76”

Rear Twin Bed Size – Right (width x length)27” x 72”

Rear Twin Bed Size – Left (width x length)27” x 76”

Front Single Bed Size – Right (width x length)22” x 74”

RV Warranty

Six year unlimited mileage/km, Peace of Mind motorhome warranty, covering the manufacture of the motorhome, appliances, electronics, plumbing and EcoTrek™ batteries. Original manufactures warranty on all appliances will be applied first. Warranty excludes the complete chassis and AGM batteries which have a normal one year manufacturer’s warranty.

Chassis Warranty

Three year/36,000 mile or 60,000 km limited “bumper to bumper” warranty and five year/60,000 mile powertrain warranty as offered by General Motors. Refer to chassis manufacturers’ website for complete details.

1. Allowance for weight of occupants, water, propane and cargo. Reduce by weight of optional equipment.
2. GCWR includes total weight of vehicle, trailer, equipment, fuel, water, propane, cargo, driver and passengers.
3. Maximum towable weight with driver and fuel only. This weight reduced by weight of optional equipment, water, propane, cargo and/or passengers.
4. A weight distributing hitch is required for tongue weights over 200 Kg/400 lbs.

Air ConditionerStandard

110V, 10,200 BTU

ArmoireOptional

Removable armoire (interchangeable with right lounge seat)

AwningStandard

11’ 6” power awning

Bathroom – Temporarily EnclosedOptional

Temporary enclosed with bi-fold doors and 2nd row lounge seat

Bathroom – Permanently EnclosedStandard

Permanently enclosed with sink & shower

BatteriesStandard

Two 6V AGM, 2,400W

Batteries (2 Additional)Optional

Two additional 6V AGM batteries 200 AMP

DinetteOptional

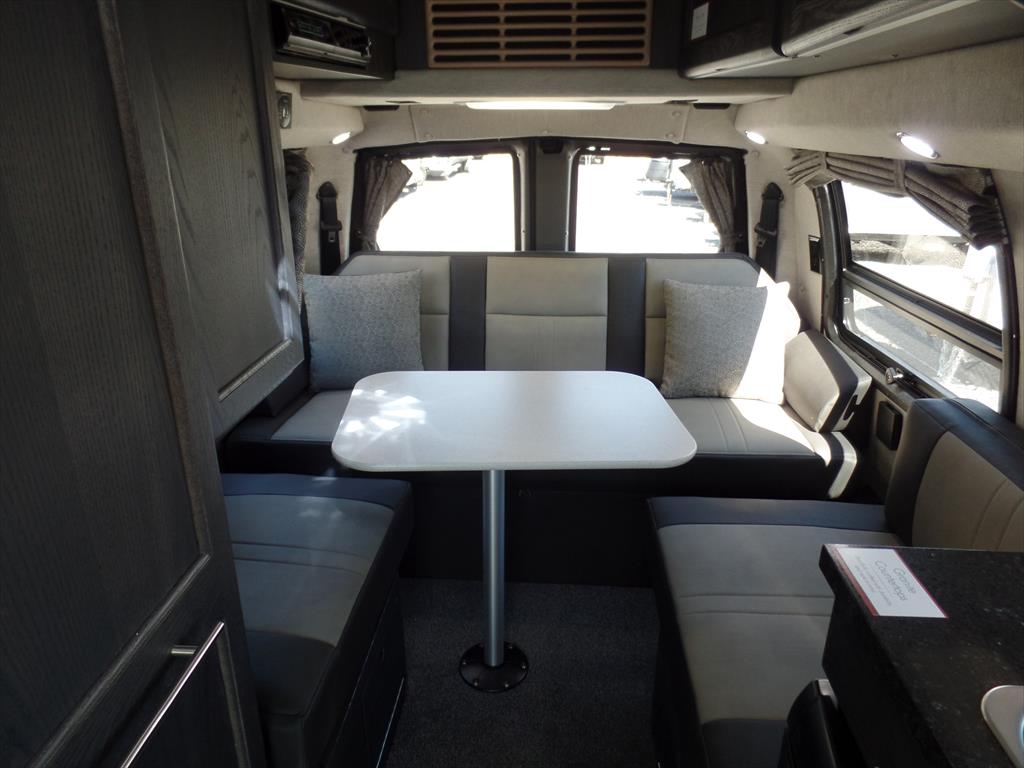

Dinette with table (converts to twins or king size bed)

DetectorsStandard

Smoke, propane & CO

EcoTrek 400Optional

EcoTrek 400 Lithium Power Modules

External Power ConnectionStandard

110V/30 AMP permanent mount

FurnaceStandard

Propane automatic, 16,000 BTU

GeneratorOptional

Onan MicroLite (2.5 kW) conventional gasoline with remote start

Generator – Under HoodOptional

12V, 3,500W, includes 2,500W inverter/charger and two extra 6V batteries

Home Theater SystemStandard

With 5.1 surround sound & dual center speakers with DVD, CD, AM/FM radio, dual use rear speakers

Mattress – Folding (Single, One Mattress)Optional

Single folding mattress for 1st & 2nd row seats

Microwave OvenStandard

110V, 20 L/0.7 cu. ft., 700W

Monitor PanelStandard

Water, propane & battery charge levels, battery disconnect & generator hour meter

Portable Solar CellOptional

Portable Solar Cell 200 Watts

Power Converter with ChargerStandard

110V/12V, 3 step 45 AMP charger

Power InverterStandard

12/110 V, 750W

Propane TankStandard

38L/10 U.S. gal., 45 lbs.

“Composite” leather rear power sofaStandard

“Composite” leather for rear 12V power sofa

RefrigeratorStandard

12V/110V propane, 3.0 cu. ft. with auto source selection

Screen PackageOptional

Screens for side & rear cargo door openings

Second Row Captain SeatOptional

Passenger side second row captain’s seat (Replaces lounge seat; not available with armoire option)

Sewage Disposal SystemStandard

12V macerator sewage pump

Solar Panels 200WOptional

Solar panel includes 200W solar panel and charge controller

Storage Compartments (Exterior)Standard

Two below floor

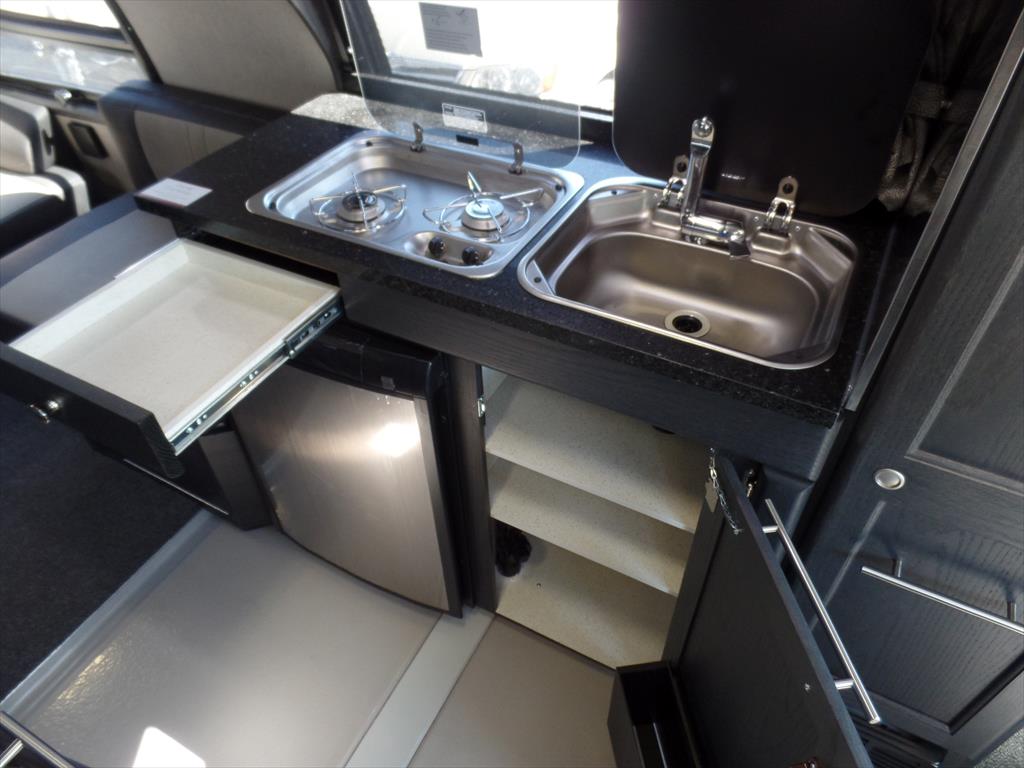

Stove – PropaneStandard

Propane; two burner, recessed with flush cover

TelevisionOptional

24″ flat screen TV on rotating bracket

Volt StartOptional

Volt Start Autostart Battery Protection Technology

Water HeaterStandard

Propane with bypass, 23L/6 U.S. gal., 12,000 BTU

Water SystemStandard

On-demand 12V with water pump

AirbagStandard

six standard (driver and passenger)

AlternatorStandard

145 AMP

Anti-Lock Brakes (ABS)Standard

Axle – RearStandard

3.42 ratio

BatteryStandard

600 AMP

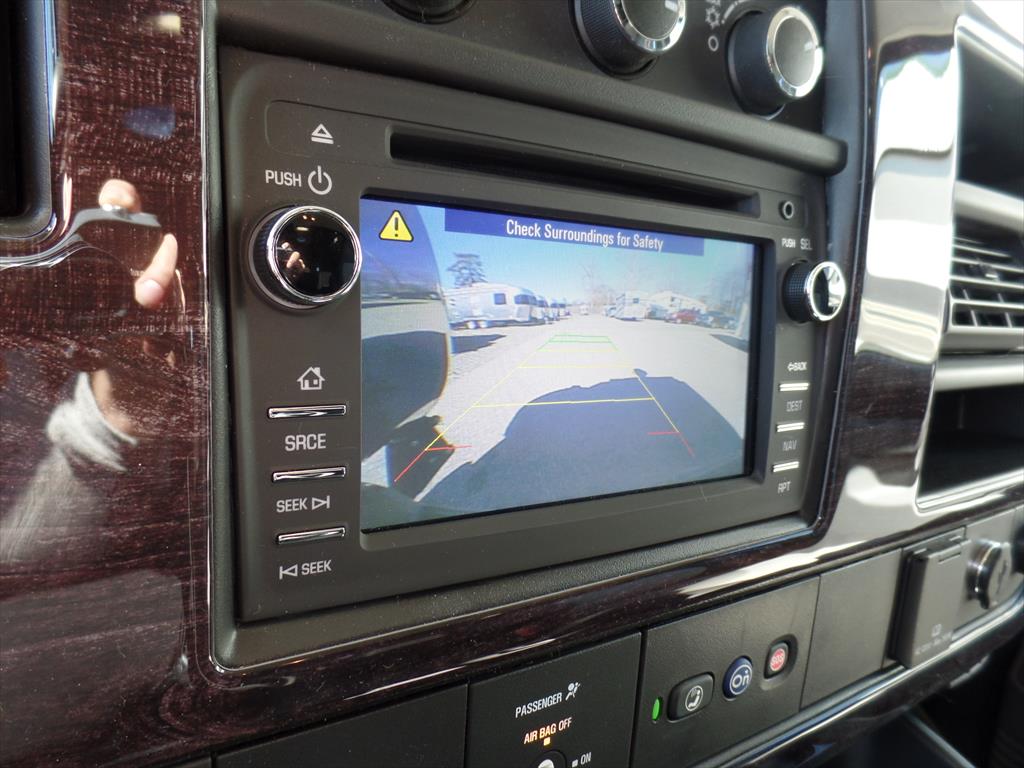

Camera – Rearview BackupStandard

Plays on in dash radio

Climate ControlStandard

Continental Spare Tire CarrierOptional

Continental spare tire kit with proprietary effort reduction system (Receiver mounted in front of driver side rear door)

Cooling – Transmission OilStandard

External

Cruise ControlStandard

EngineStandard

VORTEC 6.0 V8 gas

Headlights – Automatic On/OffStandard

Mirrors – ExteriorStandard

Power, heated with convex

OnStar®Standard

GM OnStar audio system includes My Link System (Must Code)

PowerStandard

323HP

RadioStandard

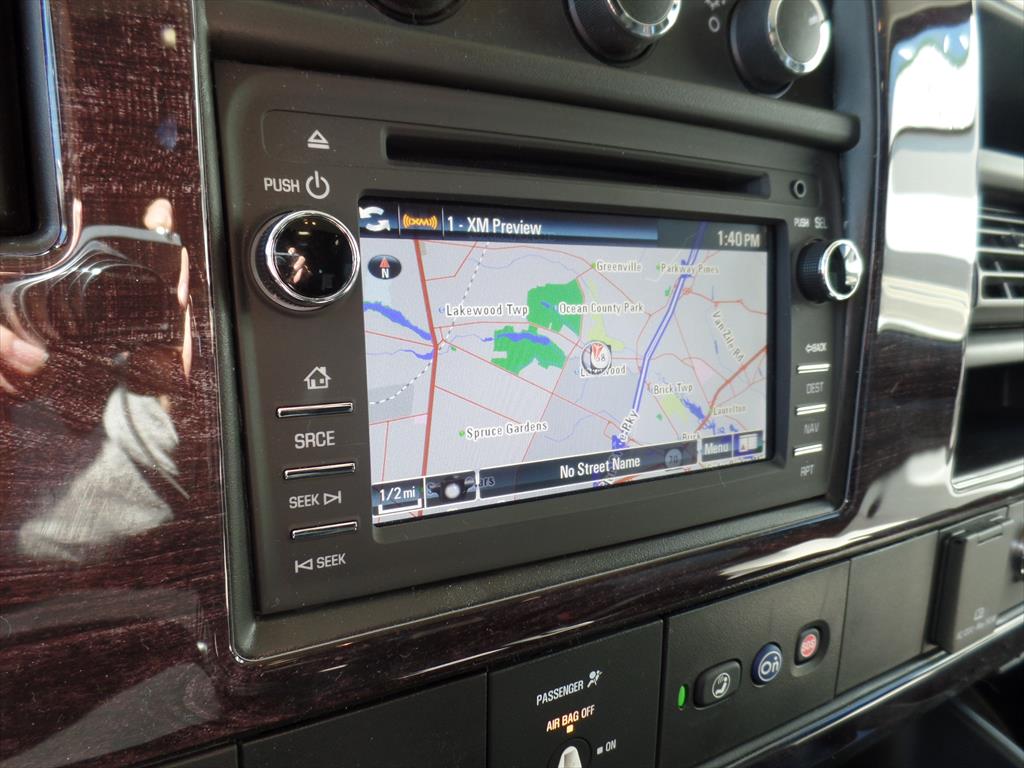

Chevy MyLink radio with navigation, AM/FM stereo, CD player & touch screen navigation

ReceiverStandard

Class IV

Theft Deterrent SystemStandard

Tilt SteeringStandard

Tire StorageStandard

Rear storage area

TiresStandard

LT245/76R16 black wall

TorqueStandard

504 Nm/373 lb.ft.

TransmissionStandard

automatic 6-speed heavy duty

Wheels – AluminumOptional

16″ aluminum polished wheels with steel spare

Window Operation – PowerStandard

Front door power windows

Wiring Harness for TowingStandard

4-way & 7-way connector

Charcoal ExteriorOptional

Charcoal paint

Silver Ice ExteriorOptional

Silver Ice paint

Bright White ExteriorStandard
